MCC044-01 Drawer System With Fridge Slide

MCC drawer system is constructed from a tough galvanised steel frame with lockable stainless handles and a durable marine carpet finish.

Each drawer is rated at up to 100KG for a safe and secure storage system.

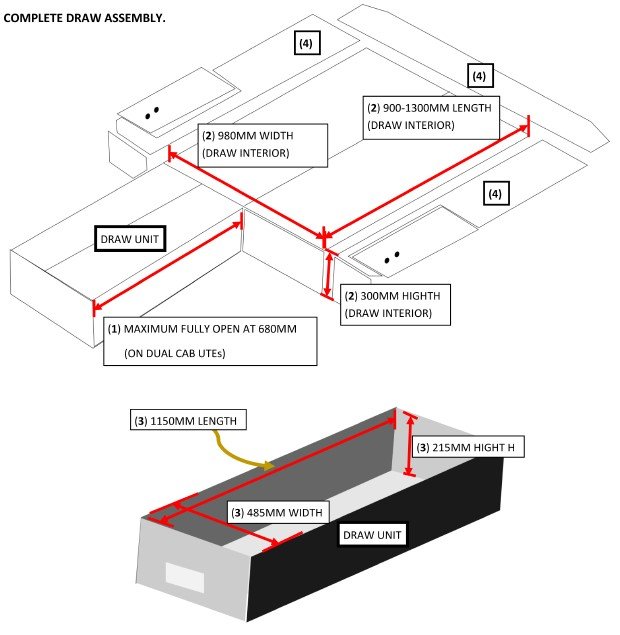

1.) Maximum fully open draw at 680mm. (On dual cab utes)

2.) Draw interior 980mm (W), 900-1300mm (L) and 300mm (H)

3.) Draw unit dimensions are 485mm (W) x 1150mm(L) x 215mm (H)(On dual cab utes)

4.) Vehicle-specific designed back and side carpeted infill panels.

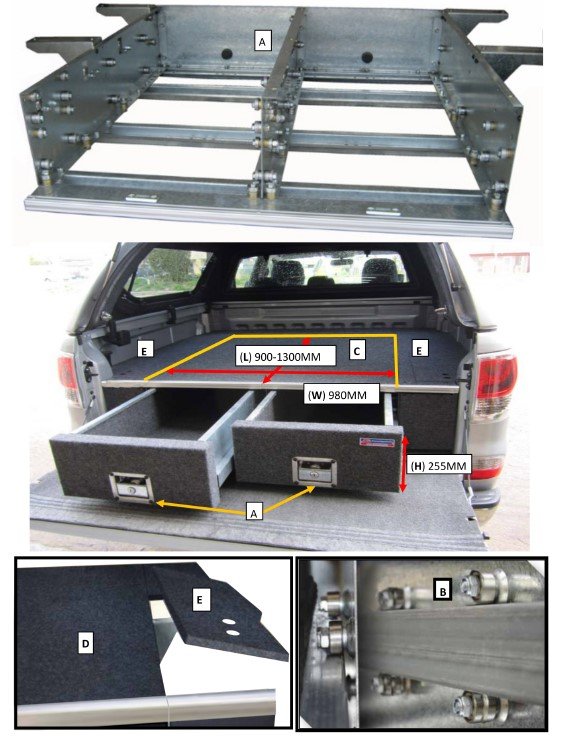

A: 1.5mm Galvanized steel construction with stainless steel slam latch locking system with heavy-duty lock barrels.

B: Over 80 durable bearings spread load for longer running life.

C: Draw internal dimensions ranging from 900mm to 1300mm in length with standard width and height of 980mm(W) and 255mm(H).

D: Marine grade UV stable carpet finish.

E: Lift outside storage compartment cover.
New

MCC drawer system is constructed from a tough galvanised steel frame with lockable stainless handles and a durable marine carpet finish. Each drawer is rated at up to 100KG for a safe and secure storage system.

MCC drawer system is constructed from a tough galvanised steel frame with lockable stainless handles and a durable marine carpet finish. Each drawer is rated at up to 100KG for a safe and secure storage system.
